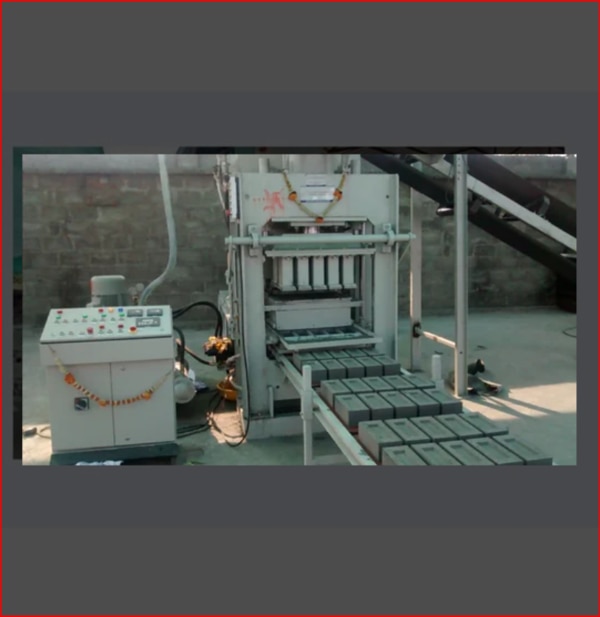

fly ash brick making machine

Latest Price Product Details: Minimum Order Quantity 1 Unit Automation Grade Automatic Capacity (bricks per hour) 2000-2500 bricks per hour Brand Suprabha Brick Type Paver, Solid, Hollow Tolerance 1 mm Method Hydraulic Pressure Brick Raw Material Fly Ash Material Mild Steel Our organization is ranked amongst the reputed names in the market for providing Hydraulic Fly Ash Brick Making Machine. Furthermore, we present this at nominal prices. The most unique attributes of this Hydraulic Fly Ash Brick Making Machine is that it produce tight texture, accurate size & shape and high strength of bricks with utmost ease. Fly Ash bricks are made of fly ash, lime, gypsum and sand. Fly ash, lime sand and gypsum are manually fed into a pan mixer where water is added in the required proportion for intimate mixing. We are getting proper response from the clients regarding our Brick Making Machines as it offer flawless performances during operations. A Project of production capacity of 10000/ shift of 8 hour Power requirements: 25 HP No of bricks (size 3”x4”x9”)/stroke: 06 Nos. Cycle time :15 sec Wooden Pallet Based machine (brick’s are pressed and conveyed out of machine on Pallets) Price range :- 700000 to 1600000 Lakh Request Callback Additional Information: Item Code: 10000

Fly Ash Brick Making Machine Hydraulic Press Specifications:- Plate type heavy structure of 16mm steel plate thickness. Excessively guided Mold, die and Pallet feeding slide mechanism with heavy duty dust Scraper. Heavy duty well balanced mix feeding Trolley with hydraulic operated rotor inside for proper Mould filling. 600 Kg Capacity Hopper for ample mix reserve. Max Press Capacity: 50 tons Max Working Pressure: 160 bar Work on Pre-fill exhaust technology. Cycle time:-15 sec/cycle. 1 HP Air Compressor for pneumatic Vibration for regular and effective mold filling. Roller type output Pallet conveyor for finished product 5 mtr length. Hydraulic Power Pack:- 7.5 HP vertically mounted electrical motor. Steel fabricated, Anti rust coated Oil Tank of capacity 225 liters. Oil immersed Dual pump Pressure sensor based auto unloading system for optimum power utilization. Press system with pre-Fill and exhaust valve for fast pressing. 1 return line filter and 2 suction filters for effectively saving Oil form contamination. Water cooled heat exchanger for effective oil cooling. Good quality Hydraulic Hoses, fitting and Tubes for leak free operation.
