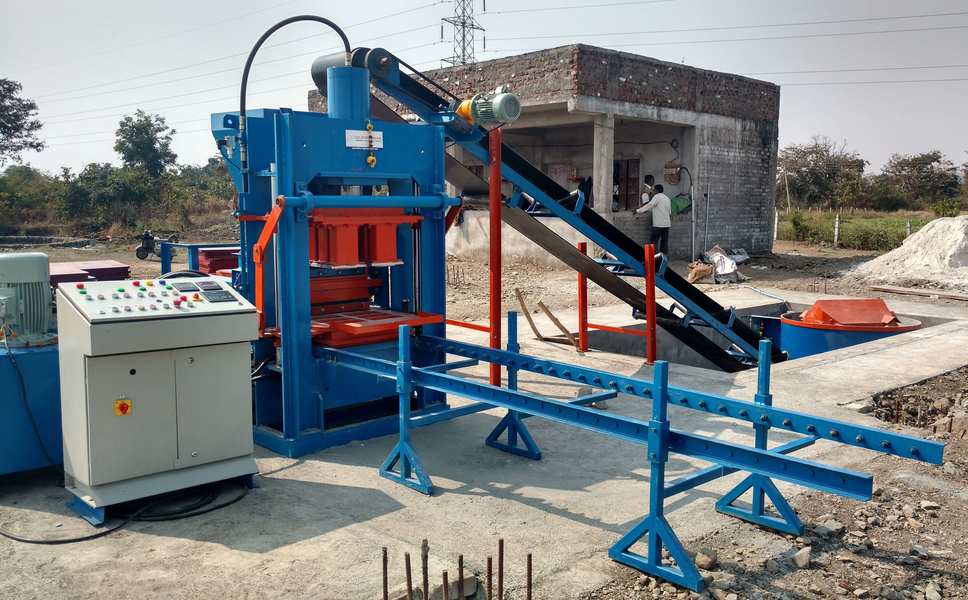

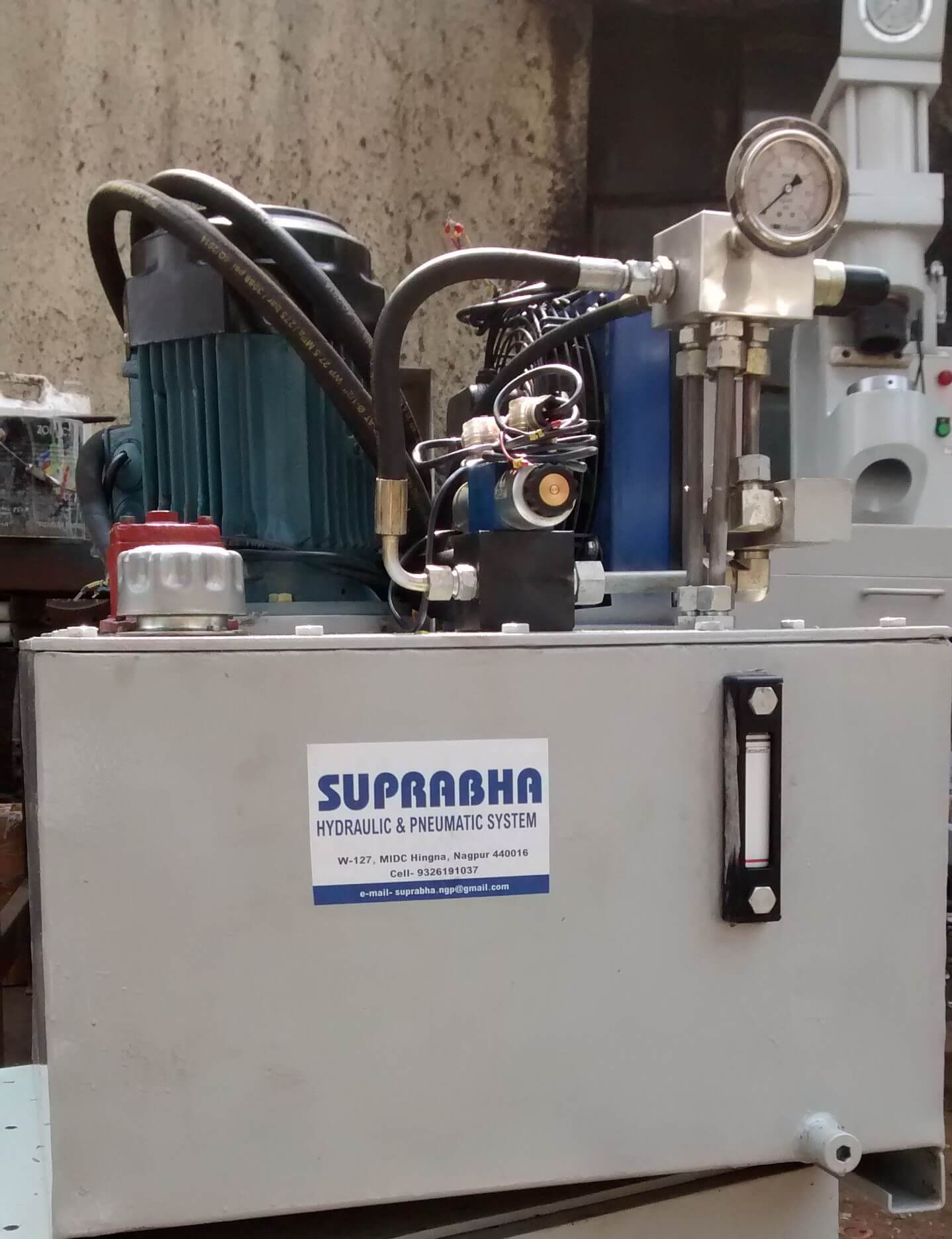

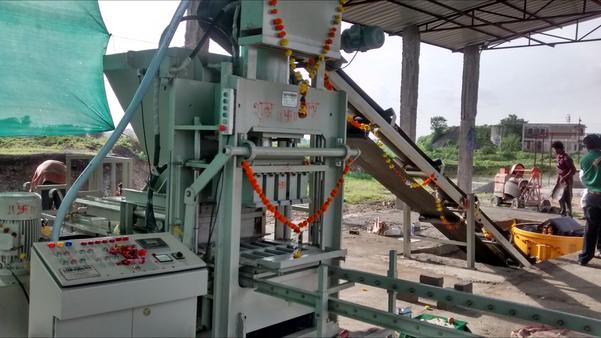

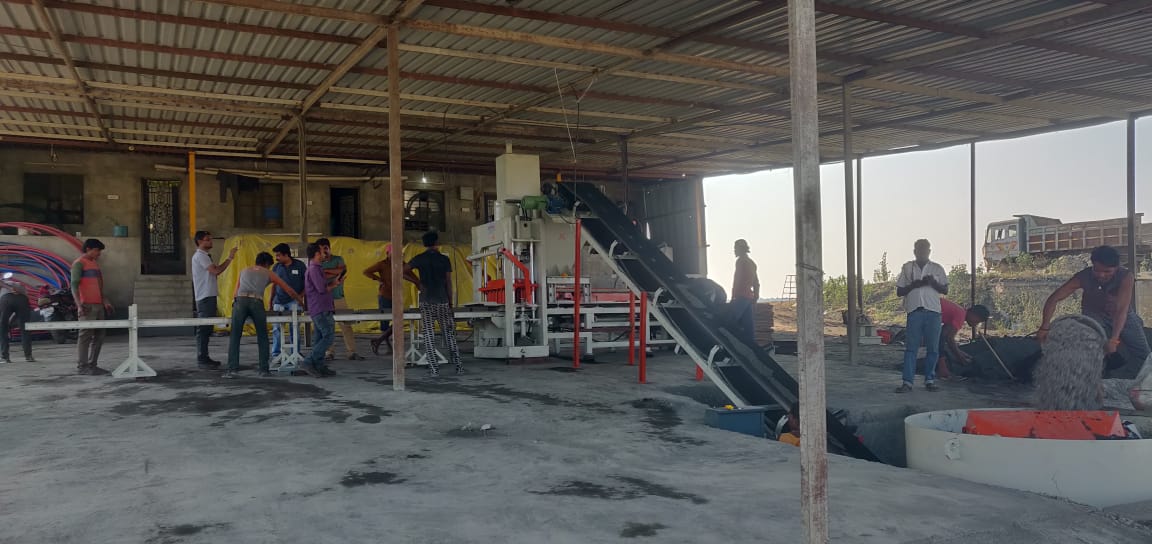

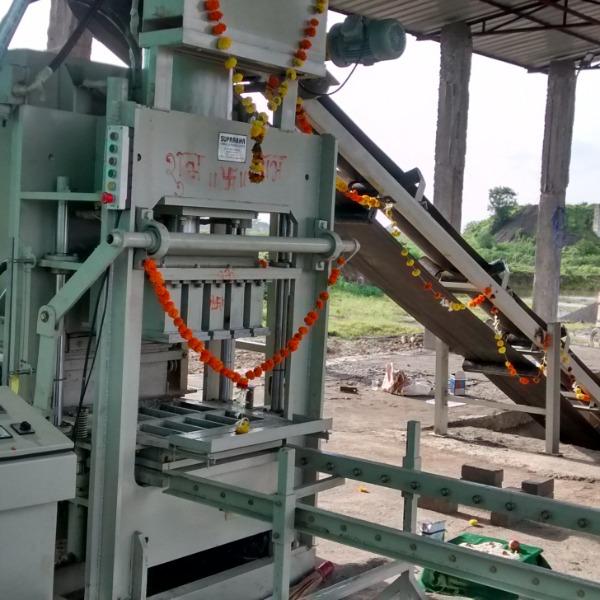

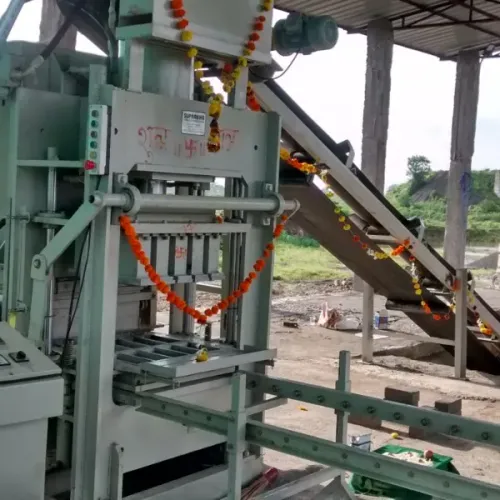

Fly Ash Brick Making Machine Hydraulic Press Specifications:- Plate type heavy structure of 16mm steel plate thickness. Excessively guided Mold, die and Pallet feeding slide mechanism with heavy duty dust Scraper. Heavy duty well balanced mix feeding Trolley with hydraulic operated rotor inside for proper Mould filling. 600 Kg Capacity Hopper for ample mix reserve. Max Press Capacity: 50 tons Max Working Pressure: 160 bar Work on Pre-fill exhaust technology. Cycle time:-15 sec/cycle. 1 HP Air Compressor for pneumatic Vibration for regular and effective mold filling. Roller type output Pallet conveyor for finished product 5 mtr length. Hydraulic Power Pack:- 7.5 HP vertically mounted electrical motor. Steel fabricated, Anti rust coated Oil Tank of capacity 225 liters. Oil immersed Dual pump Pressure sensor based auto unloading system for optimum power utilization. Press system with pre-Fill and exhaust valve for fast pressing. 1 return line filter and 2 suction filters for effectively saving Oil form contamination. Water cooled heat exchanger for effective oil cooling. Good quality Hydraulic Hoses, fitting and Tubes for leak free operation.

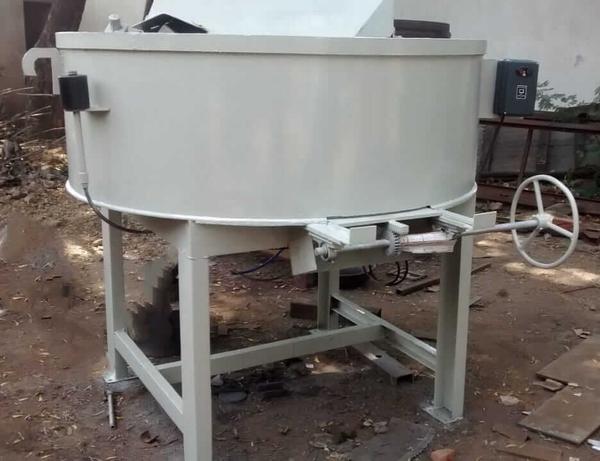

CONSTRUCTION MACHINERY : Pan Mixers SR NO Model No Gear Box Power(hp) Capacity 01 PM-01 Planetary Gear Box 05 200 02 PM-02 Planetary Gear Box 7.5 300 03 PM-03 Planetary Gear Box 10 400 04 PM-04 Planetary Gear Box 15 550 Specifications:- Planetary Gear Box: High power transmission efficiency up to 97% Wear resistance steel Scrapers for long life 3 scrapper and 2 roller arrangement. Hard wear resistance (US imported brand) 4 mm thickness base lining (replaceable) Wear resistance 3 mm side wall lining Heavy “C” Section structure Properly designed balance mechanism with required degree of freedom. Properly placed scrapers for fast discharge and complete bottom and side wall scraping. Use of reputed make bearings and seals. Proper enclosure of bearing and shafts for dust and dirt. Bottom discharged door with handle.

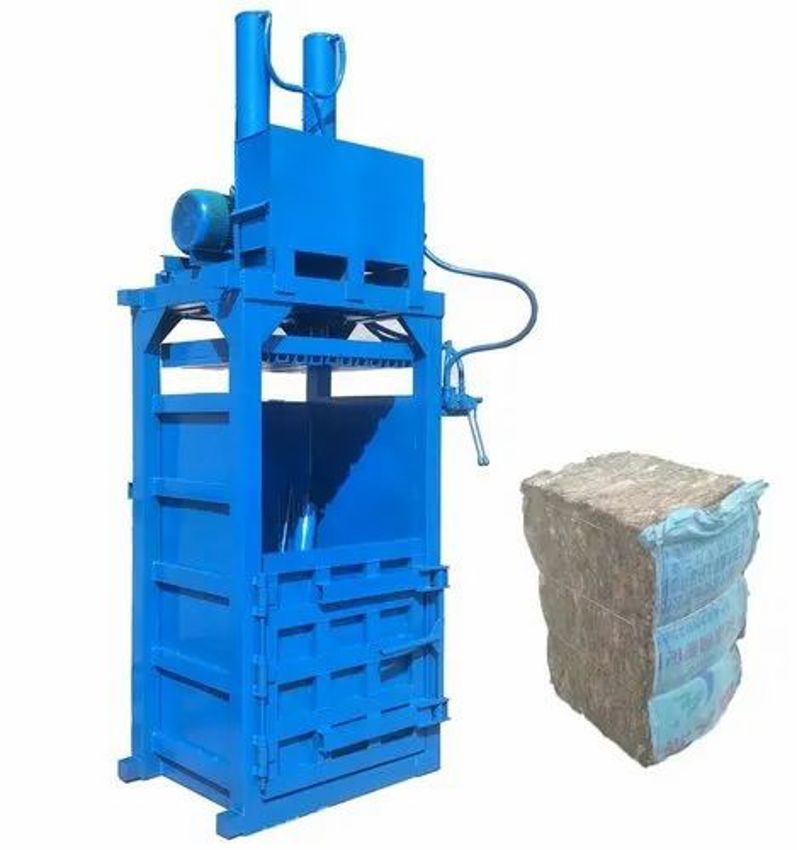

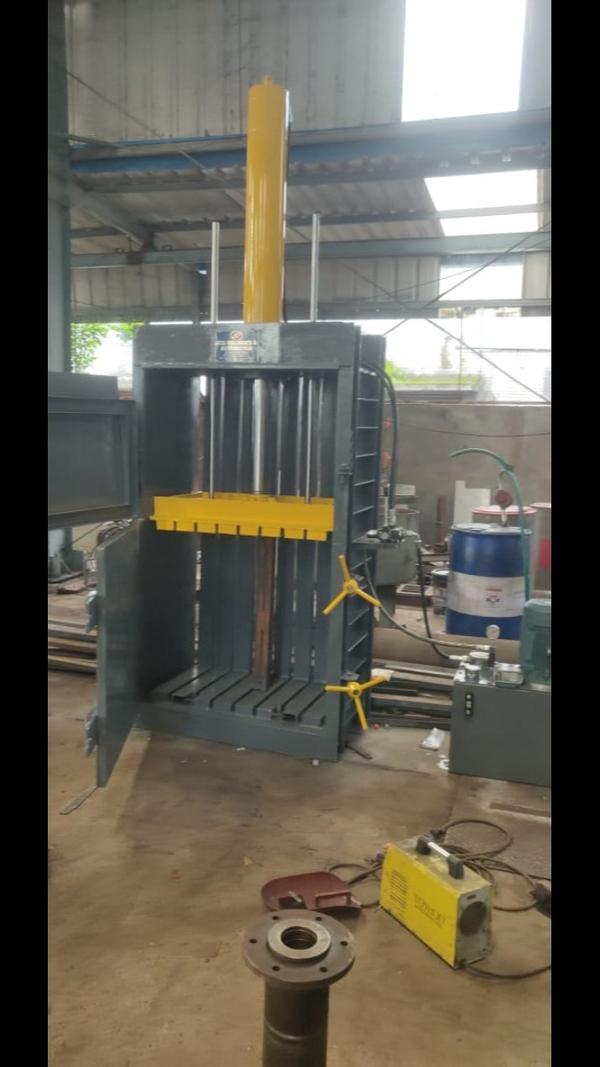

Paper Baling Press Product Details: Minimum Order Quantity 1 Unit Max Force Or Load 30-60 ton Type Hydraulic Capacity 500 kg/hr Automation Grade Automatic I Deal In New Only Automatic Grade Manual, Semi-Automatic We manufacture various bailing press for Paper and Plastic scrap. Hydraulic operated, user friendly, safe and easy to operate.
