Fly Ash Brick Making Machine Hydraulic Press Specifications:- Plate type heavy structure of 16mm steel plate thickness. Excessively guided Mold, die and Pallet feeding slide mechanism with heavy duty dust Scraper. Heavy duty well balanced mix feeding Trolley with hydraulic operated rotor inside for proper Mould filling. 600 Kg Capacity Hopper for ample mix reserve. Max Press Capacity: 50 tons Max Working Pressure: 160 bar Work on Pre-fill exhaust technology. Cycle time:-15 sec/cycle. 1 HP Air Compressor for pneumatic Vibration for regular and effective mold filling. Roller type output Pallet conveyor for finished product 5 mtr length. Hydraulic Power Pack:- 7.5 HP vertically mounted electrical motor. Steel fabricated, Anti rust coated Oil Tank of capacity 225 liters. Oil immersed Dual pump Pressure sensor based auto unloading system for optimum power utilization. Press system with pre-Fill and exhaust valve for fast pressing. 1 return line filter and 2 suction filters for effectively saving Oil form contamination. Water cooled heat exchanger for effective oil cooling. Good quality Hydraulic Hoses, fitting and Tubes for leak free operation.

CONSTRUCTION MACHINERY : Pan Mixers SR NO Model No Gear Box Power(hp) Capacity 01 PM-01 Planetary Gear Box 05 200 02 PM-02 Planetary Gear Box 7.5 300 03 PM-03 Planetary Gear Box 10 400 04 PM-04 Planetary Gear Box 15 550 Specifications:- Planetary Gear Box: High power transmission efficiency up to 97% Wear resistance steel Scrapers for long life 3 scrapper and 2 roller arrangement. Hard wear resistance (US imported brand) 4 mm thickness base lining (replaceable) Wear resistance 3 mm side wall lining Heavy “C” Section structure Properly designed balance mechanism with required degree of freedom. Properly placed scrapers for fast discharge and complete bottom and side wall scraping. Use of reputed make bearings and seals. Proper enclosure of bearing and shafts for dust and dirt. Bottom discharged door with handle.

Paper Baling Press Product Details: Minimum Order Quantity 1 Unit Max Force Or Load 30-60 ton Type Hydraulic Capacity 500 kg/hr Automation Grade Automatic I Deal In New Only Automatic Grade Manual, Semi-Automatic We manufacture various bailing press for Paper and Plastic scrap. Hydraulic operated, user friendly, safe and easy to operate.

Get Latest Price Product Brochure Product Details: Minimum Order Quantity 1 Unit Type Hydraulic Power 5hp-15hp Material Mild Steel Capacity 20tonn and above Automation Grade Automatic Machine Grade Automatic Brand Suprabha Hydraulic and Pneumatic Systems We manufacture Hydraulic Scrap Bailing press for making Metal Scrap Bale.widely used to make MS scrap bale and aluminum scrap bale We make horizontal Scrap bale press from capacity 30 tones to 75 tones. Request Callback Additional Information: Item Code: SBP30 Production Capacity: 30 to 50 ton Delivery Time: 24 days Packaging Details: 01

Get Latest Price Product Details: Minimum Order Quantity 01 Unit Usage/Application Metal Scrap Model Name/Number MSBP-01 Max Force Or Load 35tonn and above Material Mild Steel Bail Weight 30kg and above Automation Grade Automatic Phase Three Phase Color Blue Electric Motor Seimens,hindustan,crompton greaves Power 05hp and above No. Of Cylinder 02 and above I Deal In New Only Fabricated Yes Brand Suprabha This press machine is used to make bundles of all type of metal scrap i.e. MS, Aluminium, Copper

Product Details: Minimum Order Quantity : 1 Piece Capacity : 2 Ton Motor Power as per load Country of Origin : Made in India An Industrial Hydraulic Goods Lift is a heavy-duty vertical transportation system designed to move goods between multiple levels in industrial settings such as warehouses, factories, and distribution centers. Utilizing hydraulic power, these lifts offer smooth, reliable, and efficient movement of heavy loads, enhancing operational productivity and safety. Key Features & Specifications High Load Capacity: Capable of handling weights ranging from 200 kg to 6,500 kg, accommodating various material handling needs. Customizable Platform Dimensions: Platforms can be tailored to sizes up to 6,000 mm in length and 2,500 mm in width, ensuring compatibility with diverse load types. Variable Lifting Heights: Offers lifting heights up to 22 meters, suitable for multi-story applications. Smooth & Controlled Operation: Hydraulic systems provide precise control over lifting and lowering, minimizing load sway and enhancing safety. Safety Features: Equipped with emergency stop buttons, overload protection, anti-slip platforms, and interlocking doors to ensure secure operation. Space-Efficient Design: Ideal for installations with limited space, including narrow aisles and mezzanine levels. Durable Construction: Built with high-strength steel and corrosion-resistant materials to withstand harsh industrial environments. Request Callback Additional Information: Production Capacity: 1 Delivery Time: 30 days Packaging Details: Affix clear labels indicating the contents, handling instructions

Get Latest Price Product Brochure Product Details: Minimum Order Quantity 01 Unit Capacity upto 12ton Brand Suprabha Working Height 20 feet Running Mode Stationary Platform Area 3000 x 3500 mm Lift Drive hydraulics Material MS Max. Lifting Height 20 feets Min Lifting Height 2.5 feets Designed For Lifting heavy material Country of Origin Made in India Scissor lifts are most commonly used ariel platforms. This is specially customized scissor lift for loading of fork lift trucks on it. specs can be customised as per customer requirements.

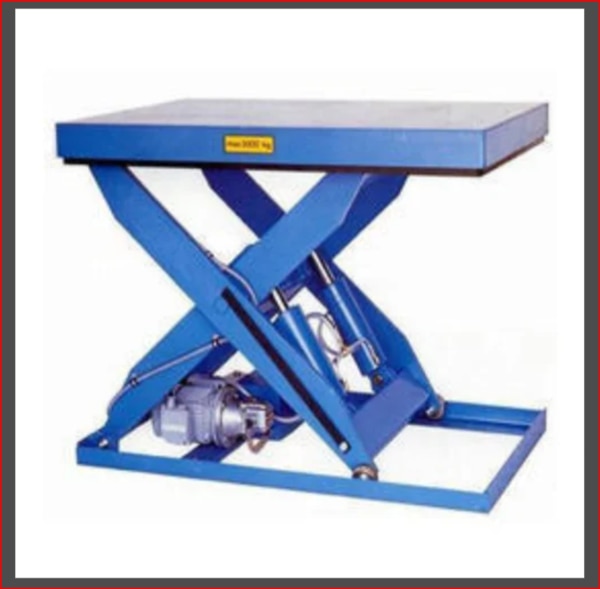

Get Latest Price Product Details: Capacity 1000 kg Running Mode Stationary Usage/Application Industrial Lift Drive Hydraulic Lift Country of Origin Made in India A scissor lift table is a lift platform that are often used for goods and material handling in manufacturing, retail, packaging, logistics, production lines, construction, and the food industry.

Get Latest Price Product Brochure Product Details: Material Mild Steel Machine Type Cable Crimping Machine Automatic Grade Semi-Automatic, Manual, Automatic Power Source Hydraulic Machine Structure Vertical Max Working Pressure 160 bar Capacity(T) 50 Ton Capacity 30 ton Our firm is a leading name, involved in providing a comprehensive series of Automobile cable end fitting Crimping Machine. Presented range is immensely admired owing to their top performance and reasonable rates. Specification: Box type heavy structure. Excessively guided Mold, die and Pallet feeding slide mechanism with heavy duty dust scraper. Heavy duty well balanced mix feeding Trolley Press system with pre-Fill and exhaust Technology for fast pressing. Cycle time:-15 sec/cycle Vibrating motor for regular and effective mold filling

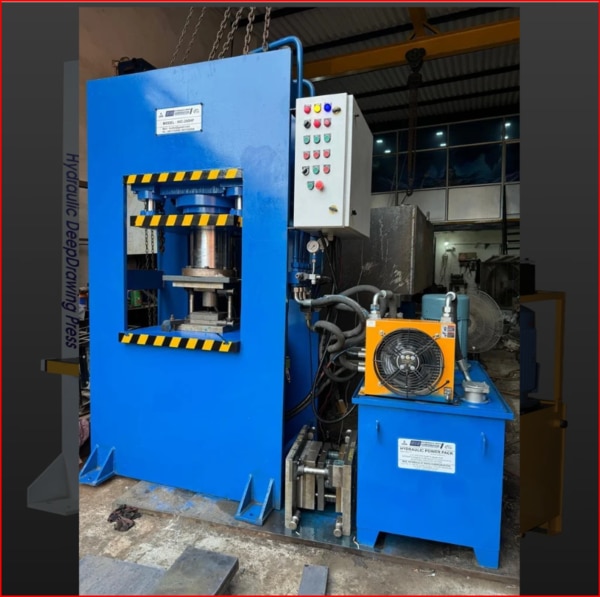

Get Latest Price Product Brochure Product Details: Capacity 60 ton Max Force Or Load 30-60 ton Automation Grade Semi Automatic Brand Suprabha Usage/Application Hydraulic Press Control Type Non-CNC, CNC Country of Origin Made in India We have been counted amongst the most trusted names in this domain, engaged in providing Hydraulic deep Draw Press. Specifications: Capacity: 10 ton to 75 tons Table Size: Customized Type: Four Pillar Operation: Electrical Power pack

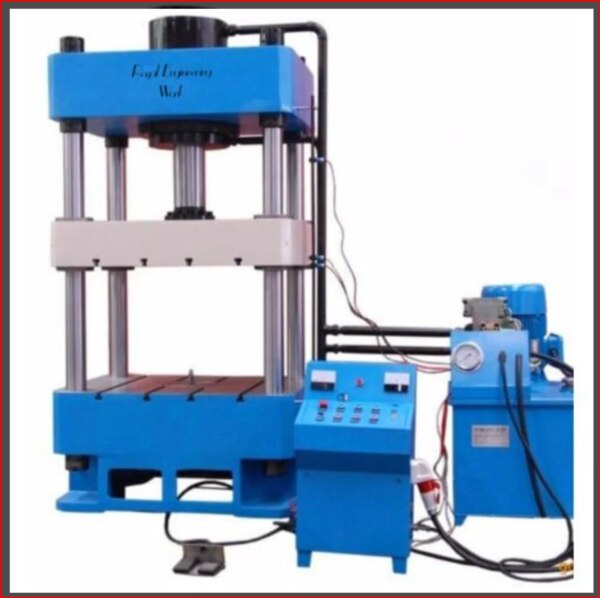

Get Latest Price Product Brochure Product Details: Minimum Order Quantity 1 Unit Automation Grade Fully Automatic Capacity 10-20 Ton Material Iron Usage/Application Industrial Brand Suprabha Country of Origin Made in India We have been counted amongst the most trusted names in this domain, engaged in providing Hydraulic Pillar Press. Specifications: Capacity: 10 ton to 75 tons Table Size: Customized Type: Four Pillar Operation: Electrical Power pack Request Callback Additional Information: Delivery Time: 2-4

Get Latest Price Product Brochure Product Details: Minimum Order Quantity 01 Piece Loading Capacity >250 kg Capacity 2 Ton Max Lifting Height 200 mm Fork Length 1500 mm Wheel Material Pneumatic Rubber tyres Number Of Tyres 3 Brand Suprabha Hydraulic Pallet Trolley are one of the highly efficient, stringently tested and durable ranges of our firm provided as per the convenient interest of our customers.
